Sirius SL83 Fresco 1500 - SL83FRESCO1500

Sirius has a reputation for quality and performance, Its range of outdoor rangehoods with its powerful motors and Italian 316 stainless steel are a another explaination of how that reputation was made

• Button Control
• 4 Speed settings
• Extraction type Onboard motor
• Motor Triple aluminium motor
• Extraction 3000m3/h
• Filter 25mm stainless steel baffle
• Lighting 5 x adjustable LED
• 10 minute run-on timer Yes
• Electrical requirement 10A
• Noise level 68 dB
• Has a 300 mm Ducting diameter

MARINE GRADE 316 STAINLESS STEEL : Sirius offers a selection of extraction motors and alfresco hoods in a marine-grade finish. If you live within 5km of the coast, your motor and hood will be functional for years to come with a marine grade rang hood.

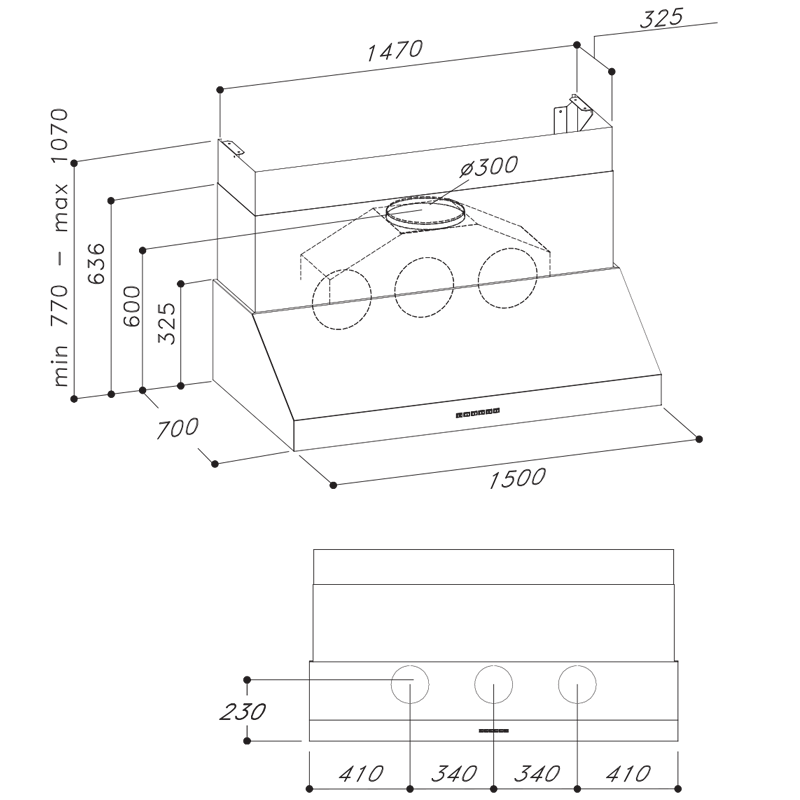

Dimensions (mm) W1500 x D700 x H770-1070

Note for installers
Open grill BBQs have the higher height restriction to prevent flames caused by fat fires being sucked up into the hood. You must leave at least 900 mm (full hotplate) or 1200 mm (open grill) clearance.

Made in Italy

Warranty 3 years (6 years when Sirius ducting is used)

USER MANUAL

SPECIFICATION SHEET

6 years when Sirius ducting is used

EASYWALL-200 Suitable for 200mm Wall vented R/Hoods

• 3M SEMI RIGID DUCT
• Universal Galvanised steel Ring clamps x 2
• STAINLESS STEEL FIXED LOUVRE WALL VENT DOMED

EASYROOF-200M Suitable for 200mm Metal Roof vented R/H

• 3M SEMI RIGID DUCT
• Universal Galvanised steel Ring clamps x 2
• G/S INTERNAL DUCT CONNECTOR x 2
• G/S RIGID DUCTING
• GALV ST (PERF)BRACSTRAP
• ROOF COWL GALV ST 150MM
• MET ROOF PIPEFLASH 435X435

EASYROOF-200T Suitable for 200mm Tiled Roof vented R/H

• 3M SEMI RIGID DUCT
• Universal Galvanised steel Ring clamps x 2
• G/S INTERNAL DUCT CONNECTOR x 2
• G/S RIGID DUCTING
• GALV ST (PERF)BRACSTRAP
• ROOF COWL GALV ST 150MM
• Tiled ROOF PIPEFLASH 505X505

EASYROOF-200T Suitable for  200mm Tiled Roof vented R/H

• 3M SEMI RIGID DUCT
• Universal Galvanised steel Ring clamps x 2
• G/S INTERNAL DUCT CONNECTOR x 2
• G/S RIGID DUCTING
• GALV ST (PERF)BRACSTRAP
• ROOF COWL GALV ST 150MM
• Tiled ROOF PIPEFLASH 505X505

EASYEAVE-200 Suitable for  200mm Eave vented R/Hoods

• 3M SEMI RIGID DUCT
• Universal Galvanised steel Ring clamps x 2
• STAINLESS STEEL FIXED LOUVRE WALL VENT
